A flat, smooth, single-lap interlocking design whose slate-like appearance is enhanced by the required broken bond laying pattern.
Technical data:-
- Size of tile - 420mm x 333mm
- Minimum pitch - 22.5º Smooth (75mm headlap). 17.5º Smooth (100mm headlap). 30º Granular (75mm headlap). 25º Granular (100mm headlap)
- Maximum pitch - 90º
- Minimum headlap - 75mm
- Maximum gauge - 345mm
- Profile depth - d<5mm
- Cover width - 292mm (nominal)
- Hanging length - 397mm (nominal)
- Covering capacity (net) - 9.9 tiles/m2 at 75mm headlap. 10.7 tiles/m2 at 100mm headlap
- Weight of tiling (approx) - 50kg/m2 at 75mm headlap. 54kg/m2 at 100mm headlap
- Battens required (net) - 2.9 lin.m/m2 at 75mm headlap. 3.1 lin.m/m2 at 100mm headlap
- Batten size recommended - 38 x 25mm for rafters/supports not exceeding 450mm centres. 50 x 25mm for rafters/supports not exceeding 600mm centres
- Tile nails - 50mm x 3.35mm
- Fixing clips - Eaves, verge and tile clips

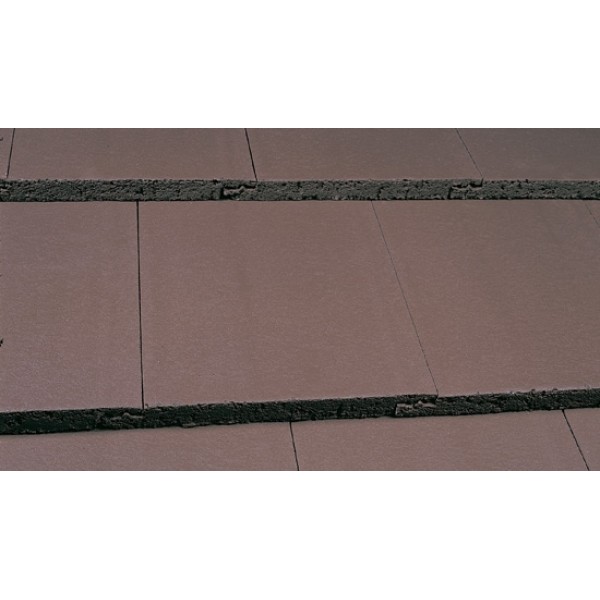

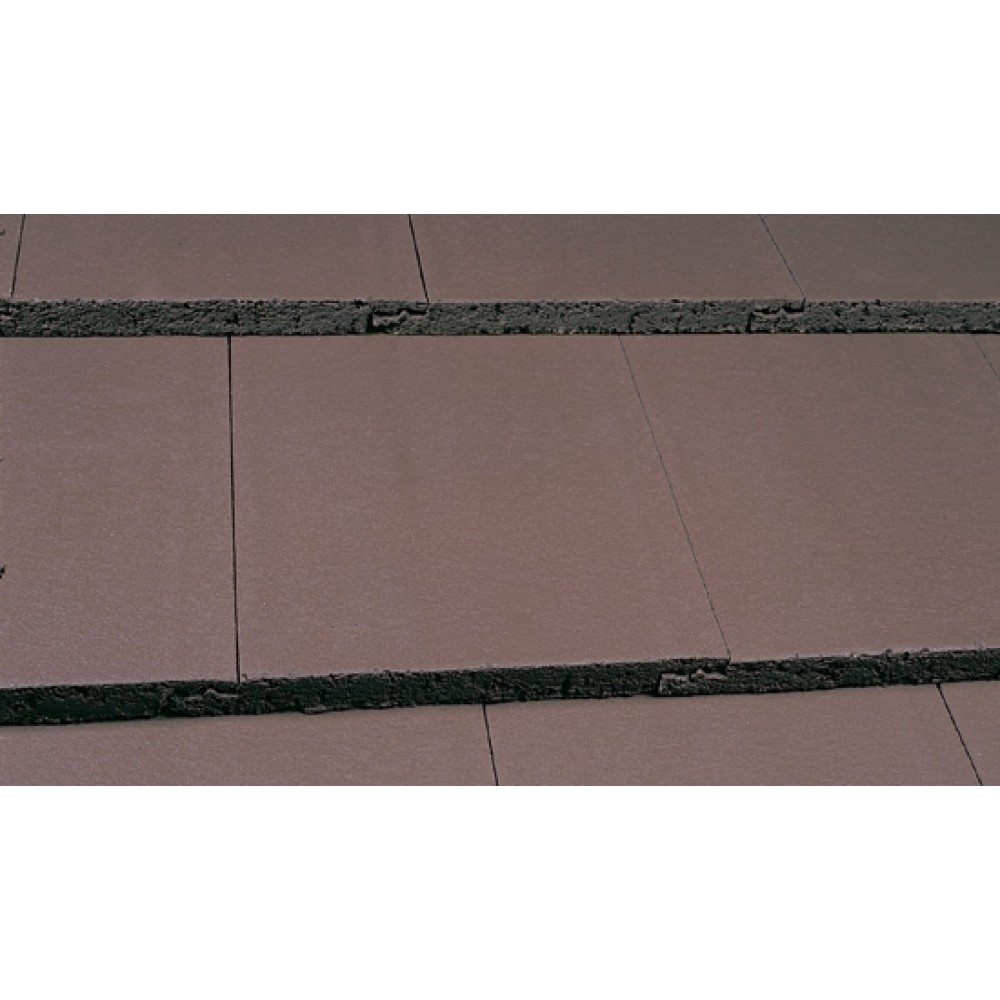

Marley Modern Smooth Brown - Pallet of 192
- Brand: Marley
- Product Code: 3812652
- Availability: Out Of Stock
-
£0.78
All Prices are exclusive of VAT
