These tiles are an ideal low-pitch solution and are capable of achieving an A+ rating in the BRE Green Guide to Specification, highlighting their versatility compared to other products in the market. With excellent coverage, high durability, and adaptability, Marley Concrete Roof Tiles are among the most popular brands on the market. In essence, if you're seeking a reliable and cost-effective roofing solution, the Ludlow Major Concrete Interlocking Roof Tiles from Marley are a stellar choice.
Technical data:
- Size of tile - 420mm x 330mm
- Minimum pitch - 25º Smooth (75mm headlap). 30º Granular (75mm headlap). 22.5º Granular (100mm headlap)
- Maximum pitch - 90º
- Minimum headlap - 75mm
- Maximum gauge - 345mm
- Profile depth - 20mm>d>5mm
- Cover width - 295mm (nominal)
- Hanging length - 399mm (nominal)
- Covering capacity (net) - 9.8 tiles/m2 at 75mm headlap. 10.6 tiles/m2 at 100mm headlap
- Weight of tiling (approx) - 45kg/m2 at 75mm headlap. 49g/m2 at 100mm headlap
- Battens required (net) - 2.9 lin.m/m2 at 75mm headlap. 3.1 lin.m/m2 at 100mm headlap
- Batten size recommended - 38 x 25mm for rafters/supports not exceeding 450mm centres. 50 x 25mm for rafters/supports not exceeding 600mm centres
- Tile nails - 55mm x 3.35mm
- Fixing clips - Eaves, verge and tile clips
£1.35 per tile

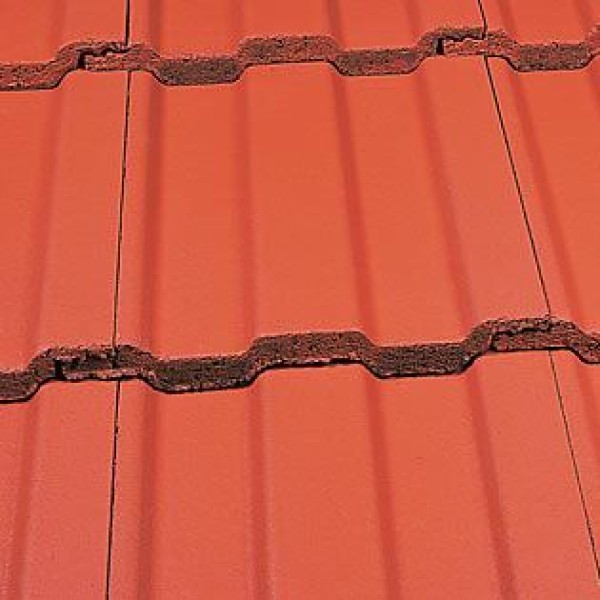

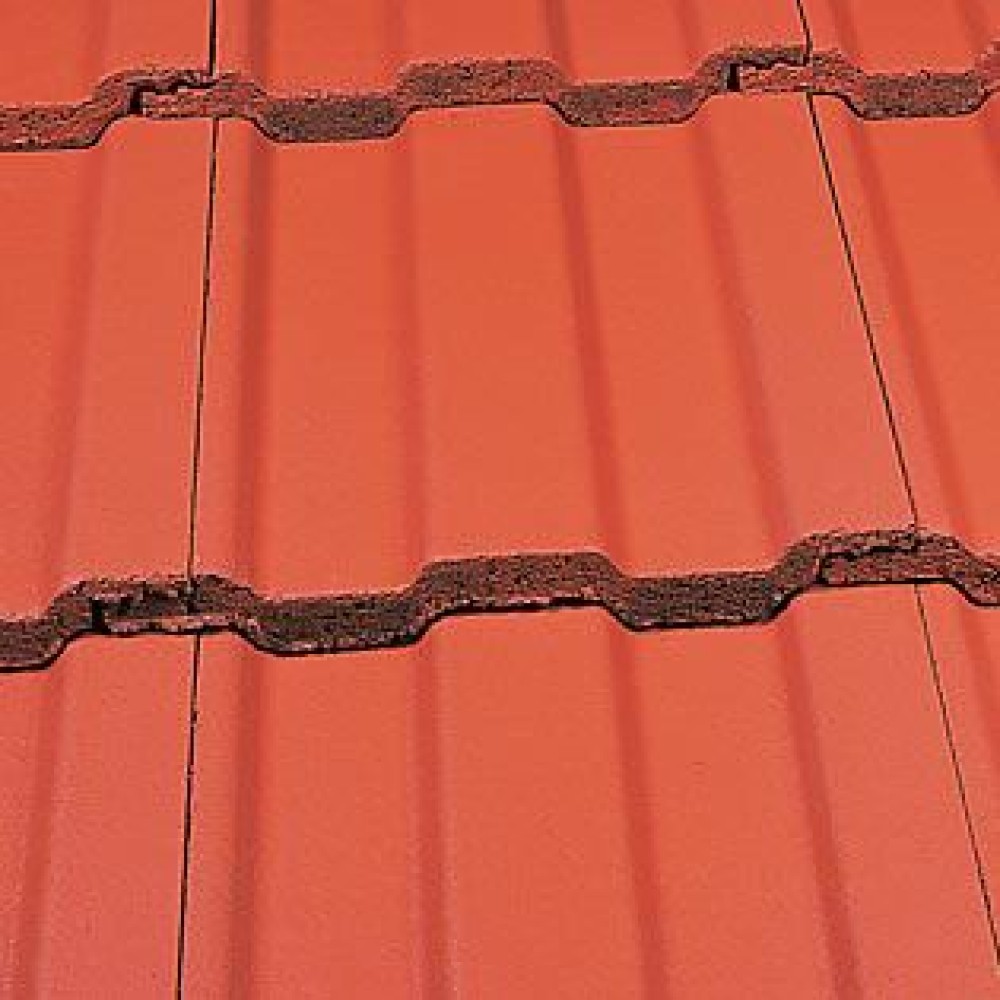

Marley Ludlow Major Mosborough Red - Pallet of 216
- Brand: Marley
- Product Code: 3810539
- Availability: Out Of Stock
-
